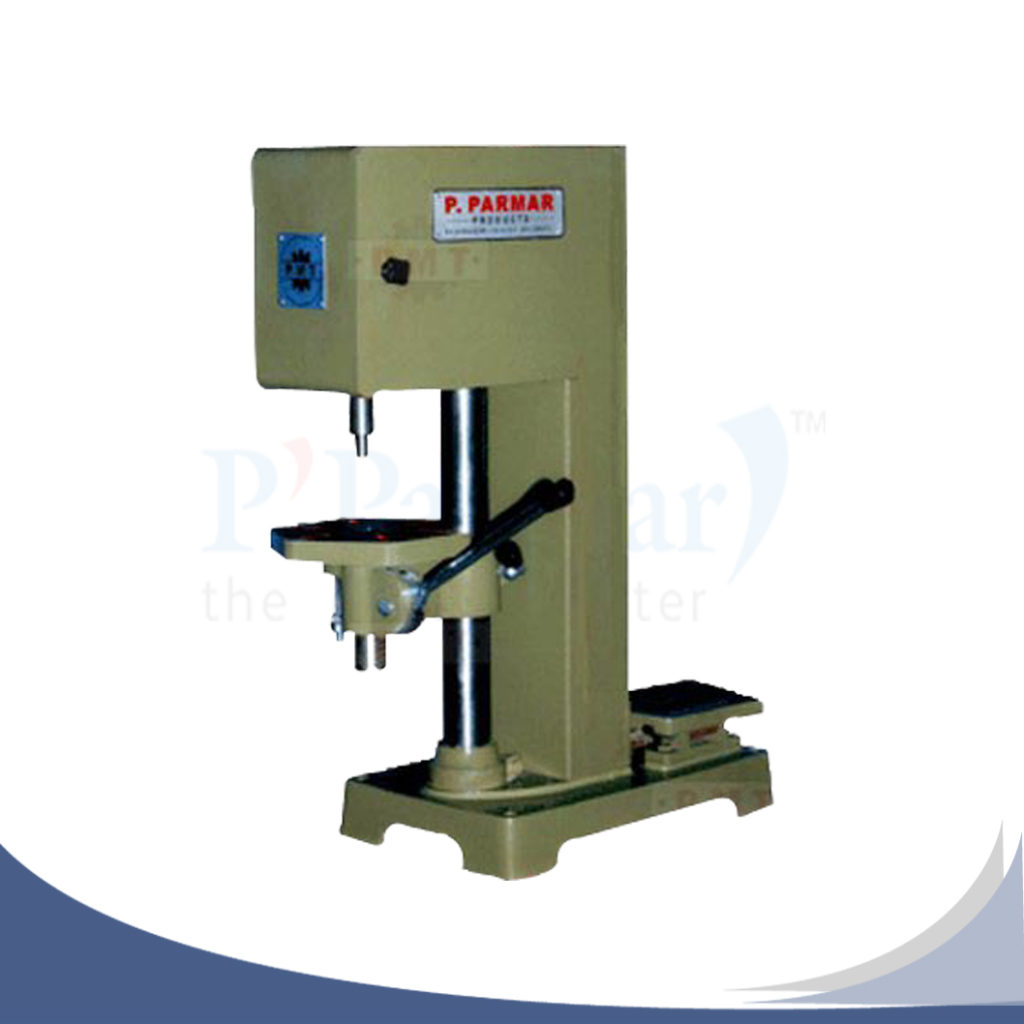

TM-6 TAPPING MACHINE

Review all details of 6mm Tapping Machine like Product, Features, Code Systems, Specification, Accessories & Download Pdf.

Technical Specification :

SpecificationTapping Machine TM – 6
Tapping Machine Capacity 6 mm.
Drilling Capacity 3 mm.
Spindle Travel/Table travel (6 mm.) 60 mm.
Distance Spindle to Column 80 mm.
Distance between chuck to base 190 mm.
Distance between chuck to work table Movable
Size of base Plate-L x B 370 x 250 mm.
Size of Work Table-L x B 150 x 150 mm.
Diameter of Column 47 mm.
V-Belt (Inside) -
V-Belt for Motor (Outside) A-36
No. of Spindle Speeds 3
Forwards Speeds Range 480 / 750 / 1400
Reverse Speeds Range 480 / 750 / 1401
Motor Single phase or three phase 0.25 H.P.
1440 R.P.M.
Overall Height 650 mm.
Overall Width 270 mm.
Overall front to back 540 mm.
Weight approx 50 Kg.

Product Features :

Tapping Machine 6mm has Specially heat lather cone also Provide specially treatment silicon liner cone.

Tapping Machine Head is made from close grained cast iron accurately bored, rimering and honed in perfect paralyze between the column and spindle. Easy clamping device fitted for locking it on the column.

The Machine Spindle is Made from EN8 to withstand distortion it is lanced and mounted on roller bearings.
Tapping Machine Table is proportionately designed for rigidity and sufficient surface area is provided to hole down job. It can be vertically powered or can be vertically powered or raised by worm and rack raised by worm rack (19mm). The slotting are provided to hold the heavy job.

Tapping Machine Base designed to provide sufficient area for heavy jobs. Slots are provided for convenient holding.
