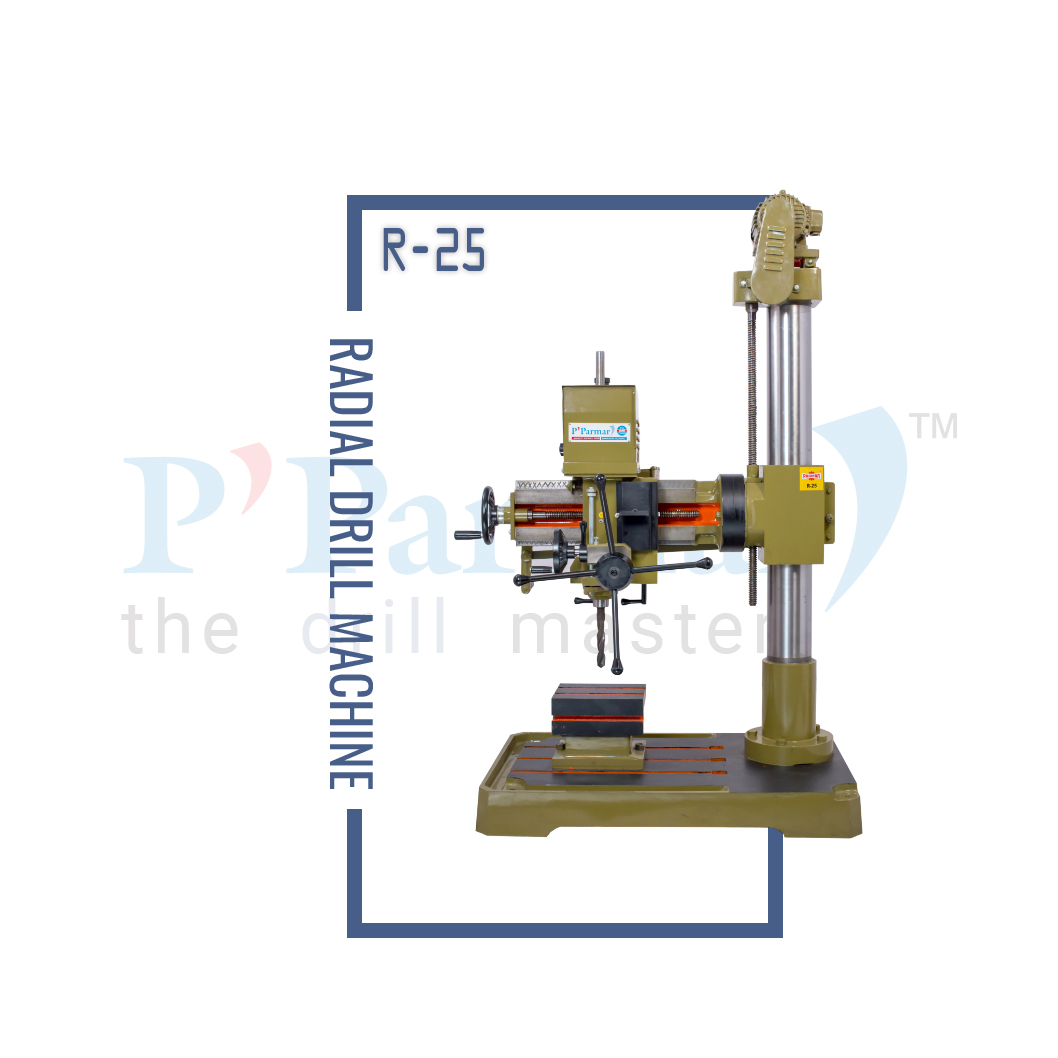

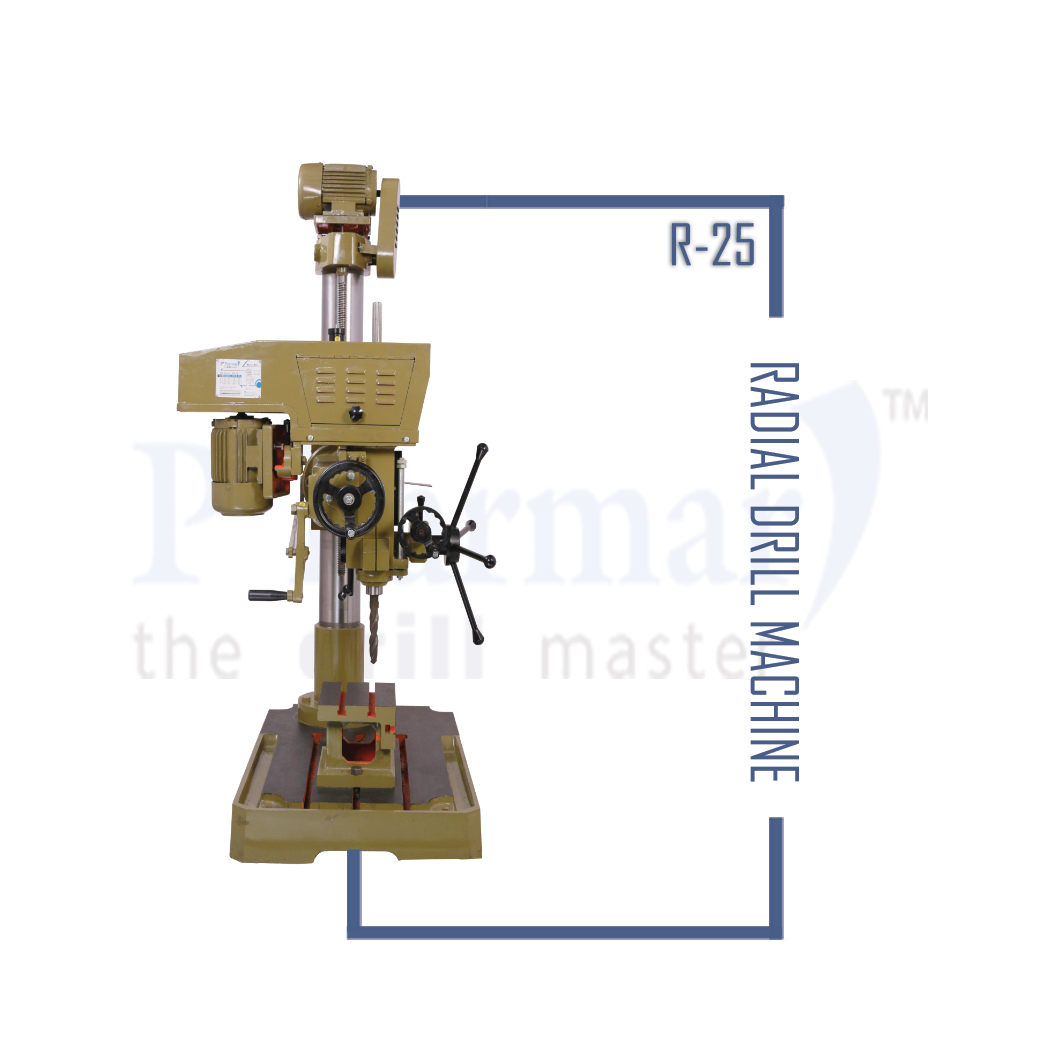

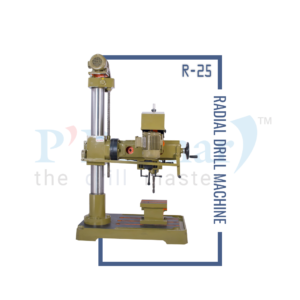

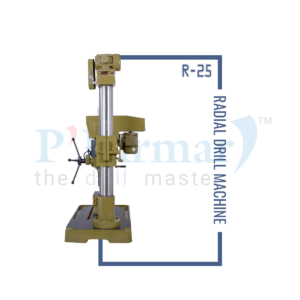

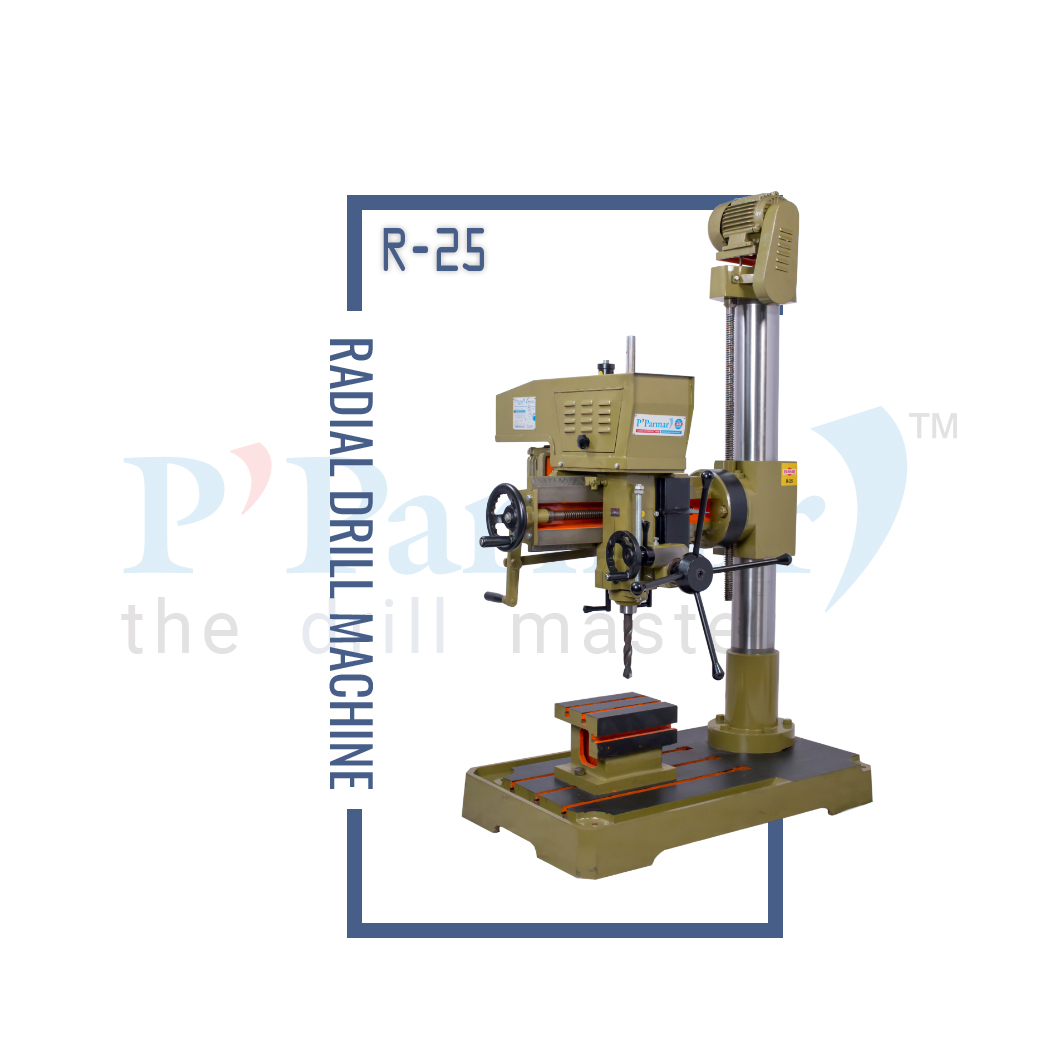

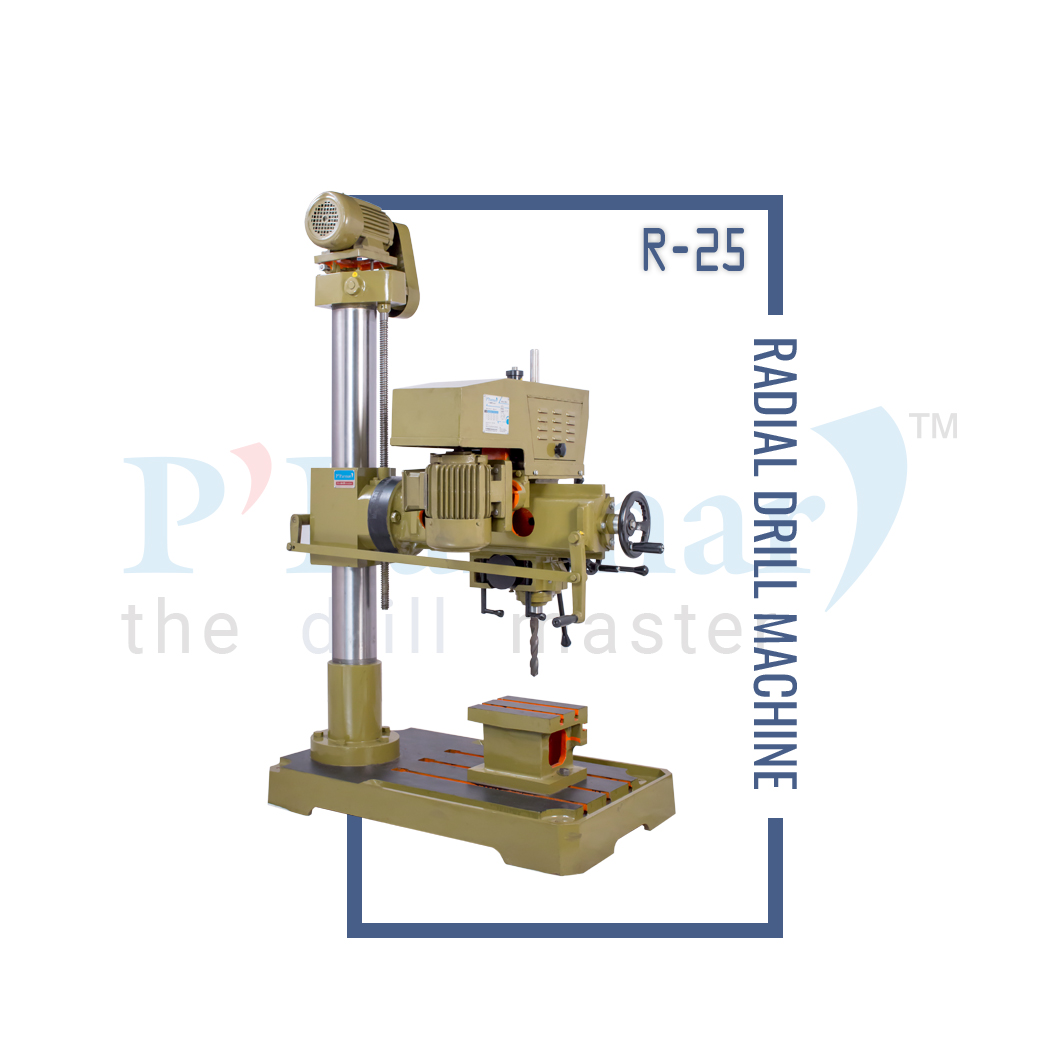

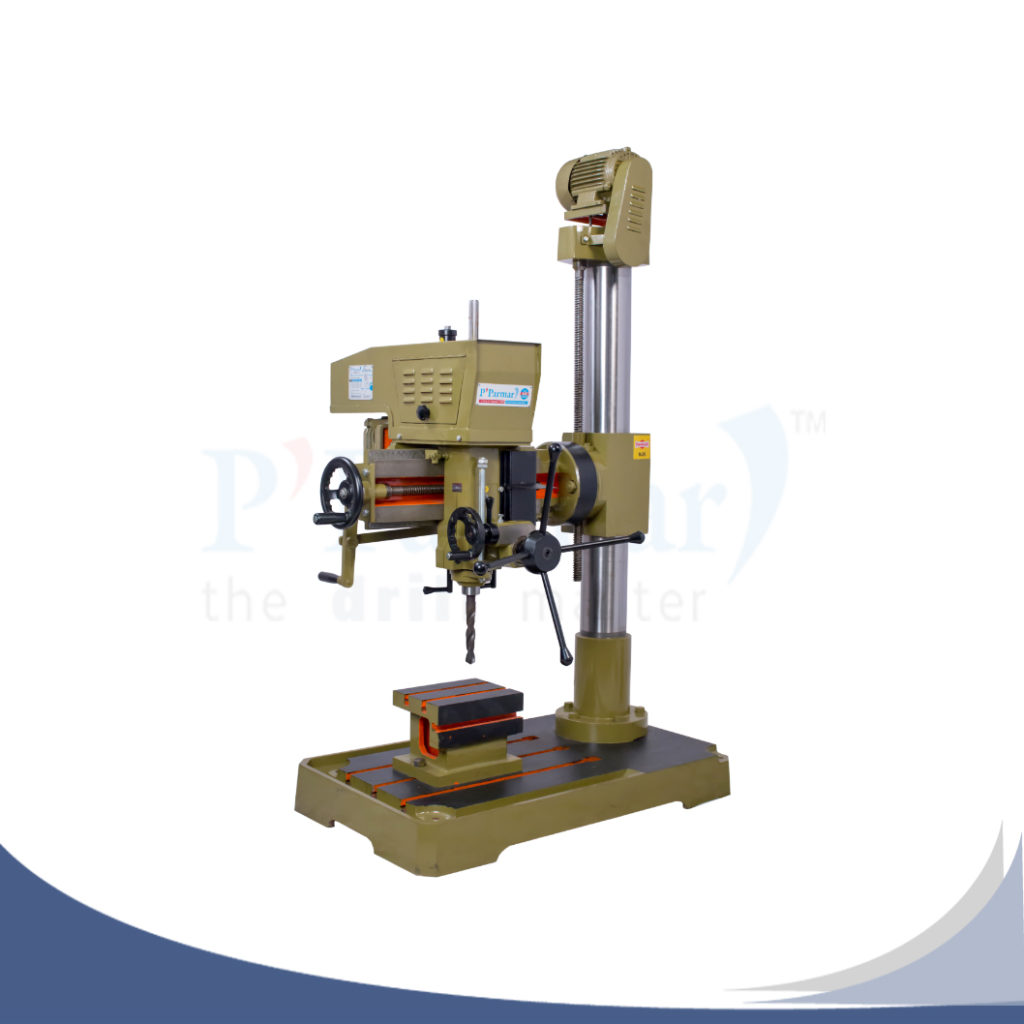

R-25 RADIAL DRILL MACHINE​

Review all details of 25mm Radial Drill Machine like Product, Features, Code Systems, Specification, Accessories & Download Pdf.

25mm Radial Drill Machine
Comparison
Send Inquiry
Download PDF

Technical Specification :

SpecificationRadial Drill Machine R-25
Drilling capacity25 mm
Pillar Diameter130 mm
Spindle nose to table distance 675 mm
Distance from spindle nose to base distance 875 mm
Distance from spindle center to pillar surface 635 mm ( MAX )
Taper in spindle MT -3
Number of speed 8 Speed
Range of Speed (RPM) 130 to 2600
Table Size (in mm) 200 x 200 x 255
Base size (Machined Area mm) 585 x 915 mm
Overall Base Size (in mm) 610 x 940 mm
Spindle Travel 185 mm
Pillar Length 1265 mm
Overall height with pulley guard 1700 mm
V-Belt section B - 43" & A - 23"
Weight (Approx.) 475 Kgs.
Motor1440 RPM 3 Phase440 volts 1 HP & 0.5 HP
Shipping Wooden Case Inner Size LxWxH(in mm) 1030 x 770 x 1770

Product Features :

  • Product Name :25mm Radial Drill Machine or R-25 Radial Drill Machine
  • We manufacture Main Spindle and pinion from EB 8-D steel by forging for robust structural strength.
  • Column, arm, work-head & gears made from fitnes closed grain cast iron; while spindle Ram is made out of Alloy steel.
  • Main spindle run out is checked for accuracy as per IS 2199, prescribed standards.
  • For the smooth sliding movement of sliding arm over the main body, special 'slide-reliever-slots' are given to rule-out friction and indentation.
  • All moving parts are fine-finished with grinding to a close tolerance, hightening the overall m/c performance.
  • International technic of 'Taper wedge setting'.This gives you complete slide-setting instead of normal one point setting.
  • Quality bearings with grease bath, so the day-today oiling is not required.
  • Main gear and pulley are perfectly balanced, prior to assembly.
  • All gears are made from SGI casting.
  • Powder coated accessories for better functioning, longer life and to prevent corresion and pillage associated with usual chrome plated accessories.
  • Machine 'T' slots on working table for precision holding of the jobs.

Model Code System

  • P = Pillar Drill m/c
  • 20/25/40 = Drilling capacity
  • S = Square Head Model
  • R = Round Head Model
  • L = Long Spindle Travel
  • A = Autofeed Model
  • X = Xtra Heavy Model

Std. Accessory

  • Motor Pulley
  • Tapper Drift
  • Manual Book
  • Drill-bit angle gauge

Extra Accessory
