40MM PILLAR DRILLING MACHINE

pmt

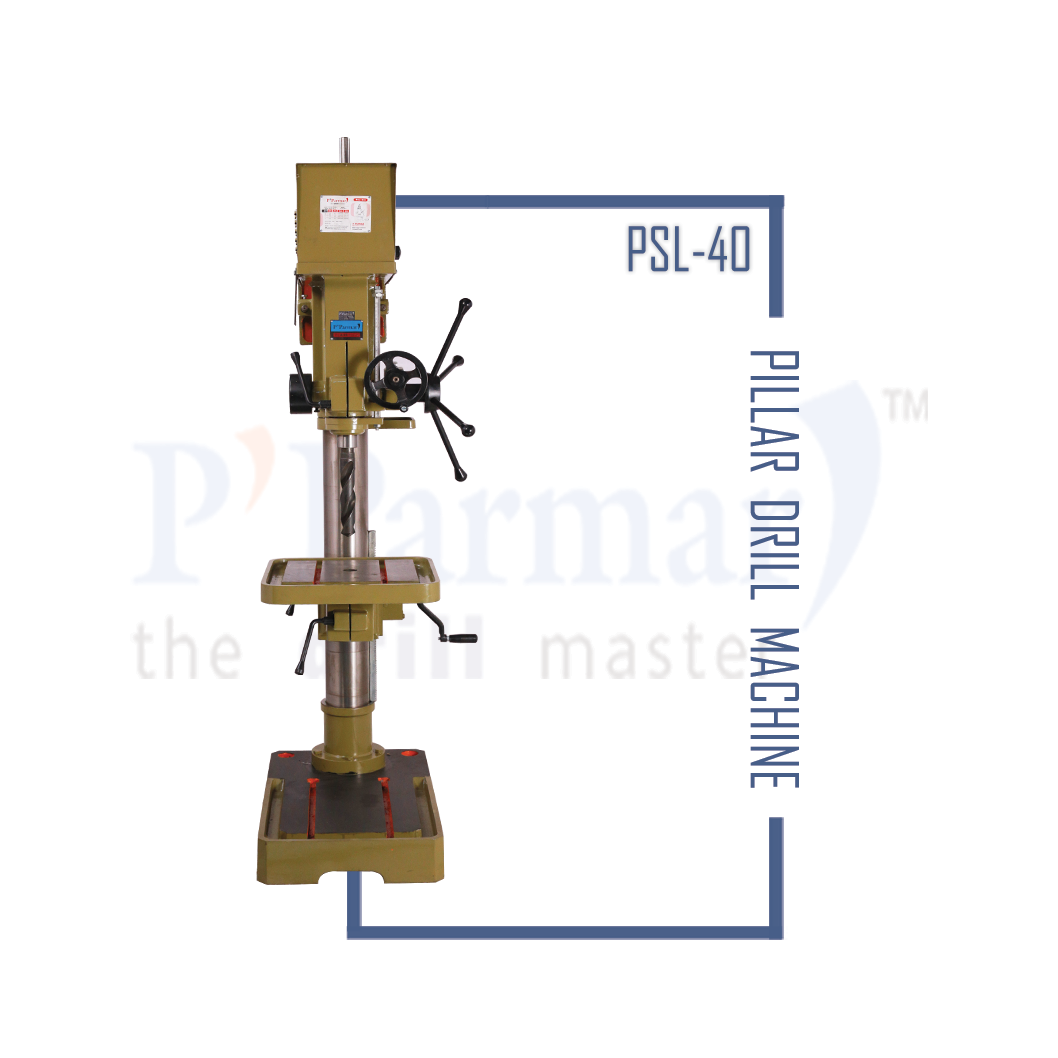

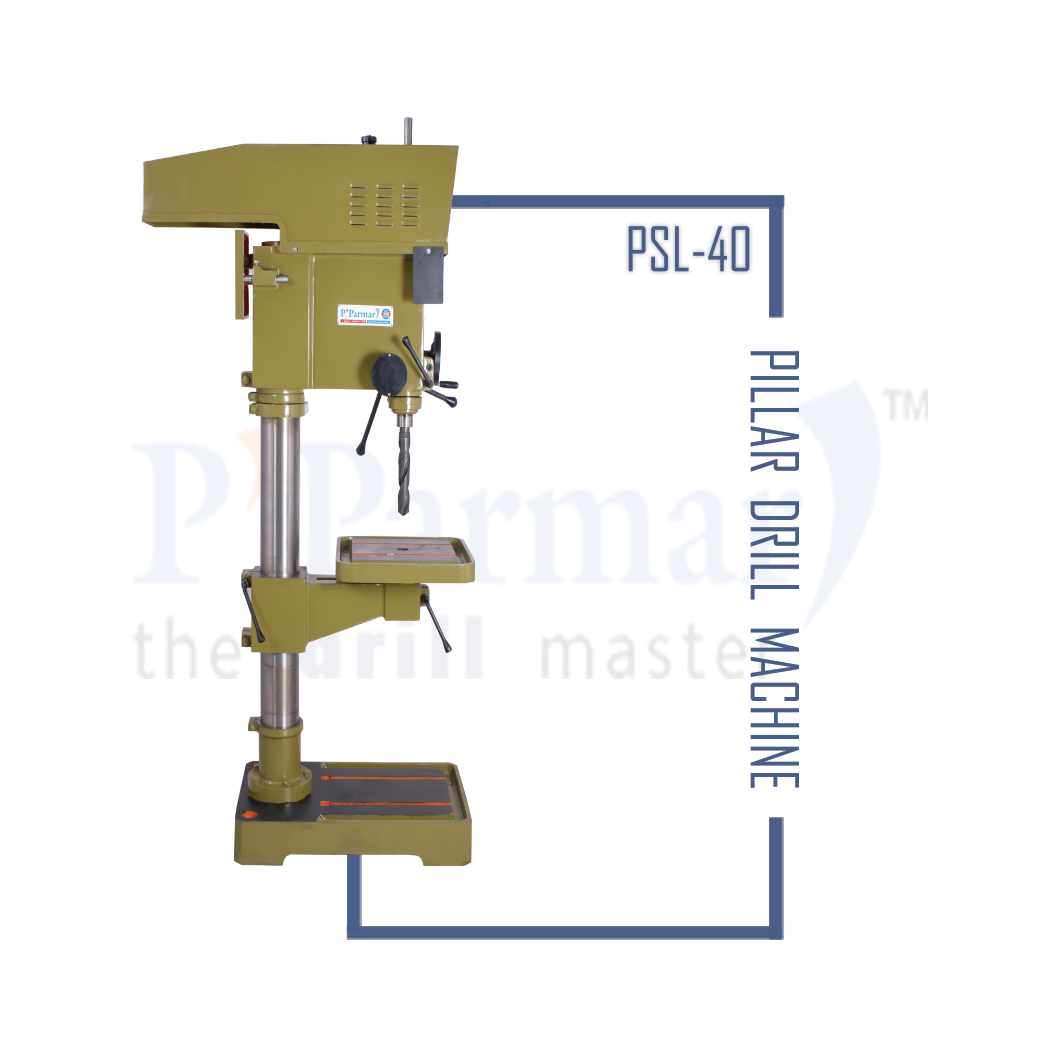

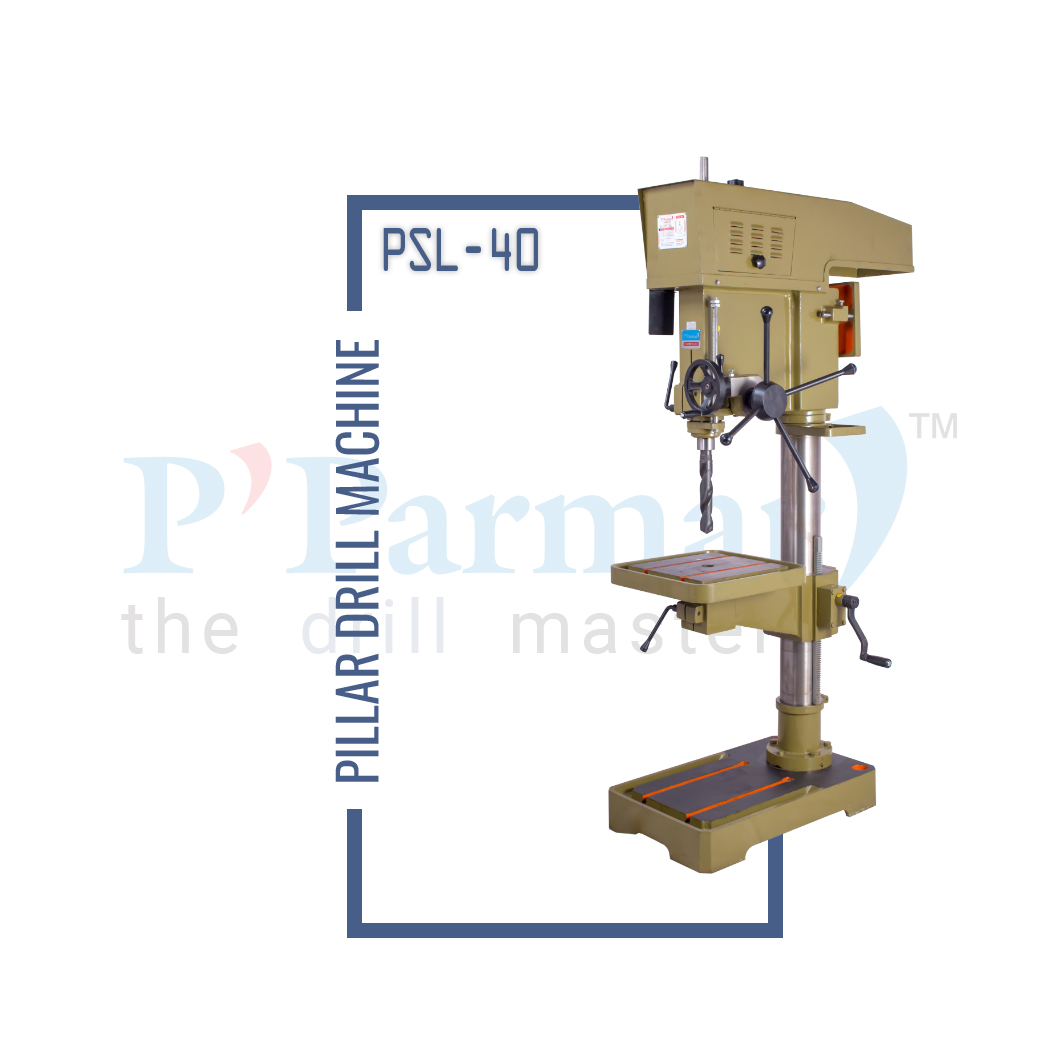

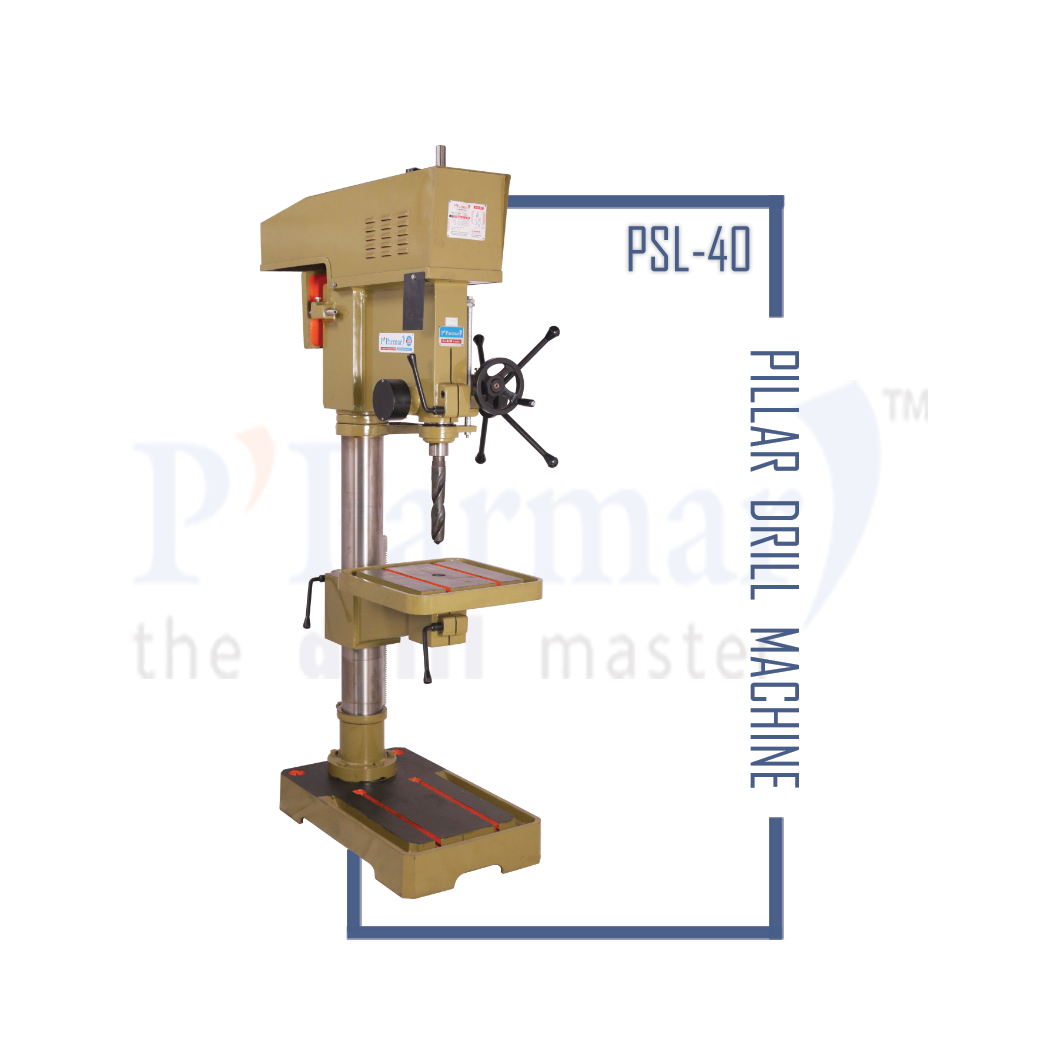

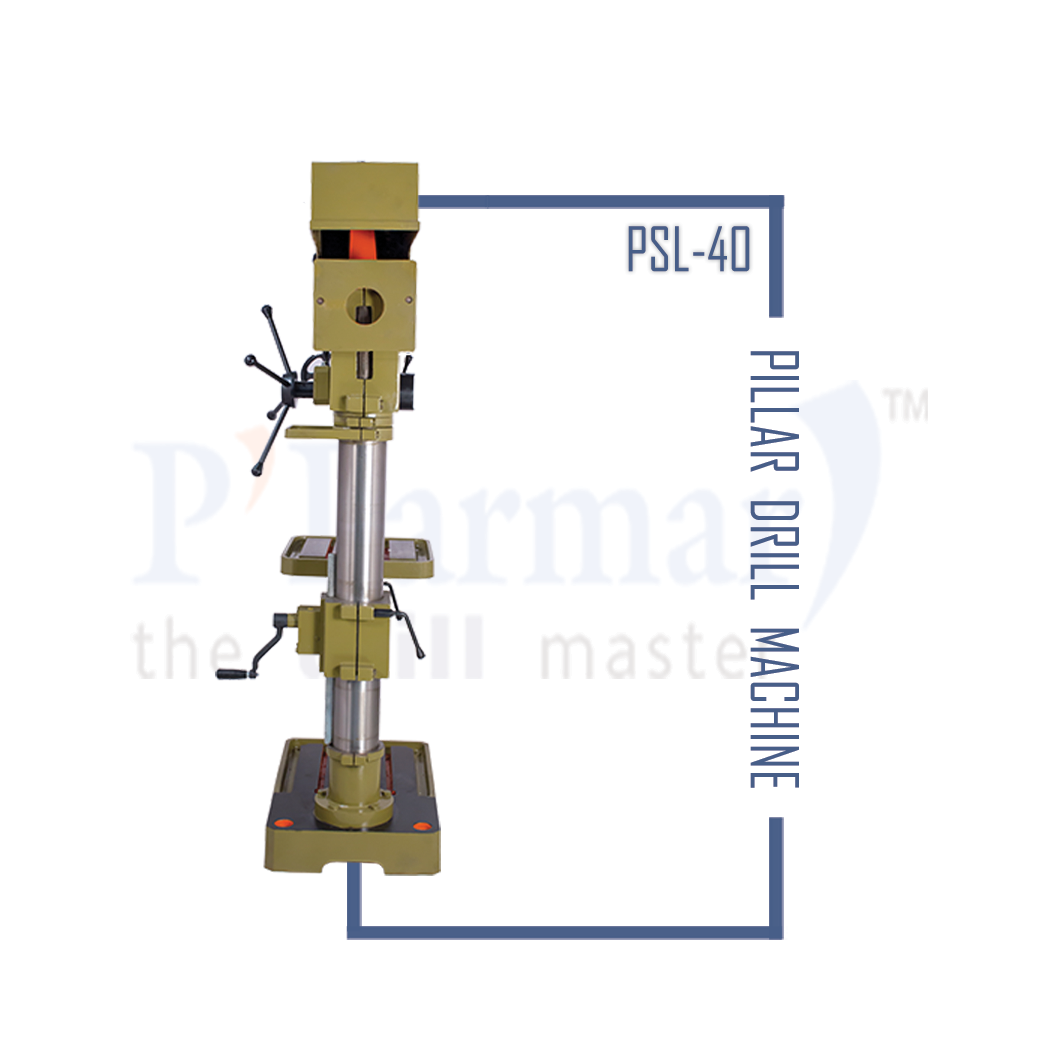

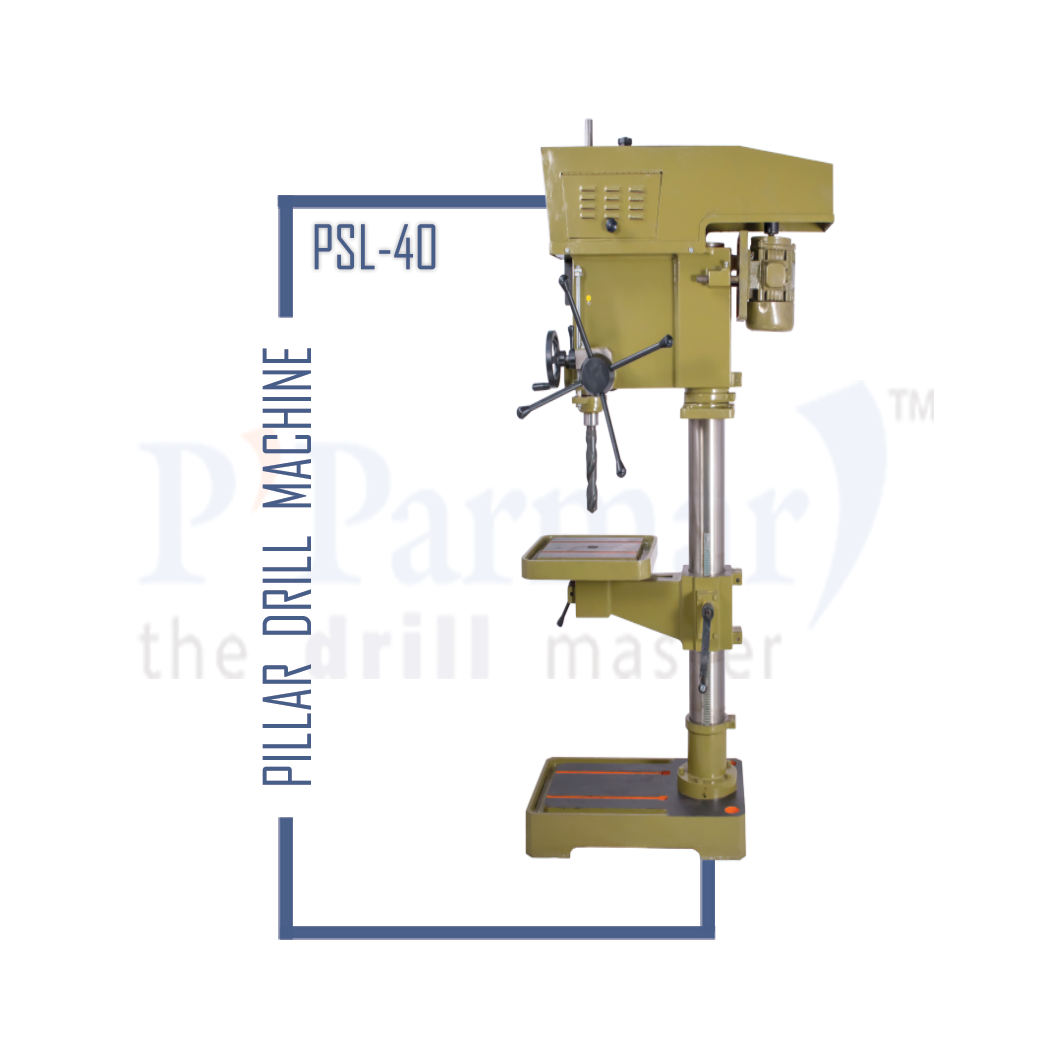

PSL-40 PILLAR DRILL MACHINE​

Review all details of 40mm Pillar Drilling Machine like Product, Features, Code Systems, Specification, Accessories & Download Pdf.

Technical Specification :

SpecificationPillar Drill Machine PSL-40
Tilting working tableFIXED
Drilling capacity40 mm
Pillar Diameter121 mm
Spindle nose to table distance595 mm
Distance from spindle nose to base distance1050 mm
Distance from spindle center to pillar surface320 mm ( MAX )
Table Travel480 mm
Taper in spindleMT – 4
Number of speed 8 Speed
Range of Speed (RPM) 70 to 2000
Table Size (in mm) 410 x 410
Base size (Machined Area mm) 440 x 715
Overall Base Size (in mm) 445 x 720
Spindle Travel 250 mm
Pillar Length 1450 mm
Overall height with pulley guard 1860 mm
V-Belt section B – 59"
Weight (Approx.) 325 kg.
Motor1440 RPM 3 Phase440 volts 1.5 HP
Shipping Wooden Case Inner Size LxWxH(in mm) 860x460x1580 mm

Product Features :

  • Product Name : 40MM Pillar Drilling Machine or PSL-40 Pillar Drill Machine
  • Main Spindle and pinion made from EN steel by forging.
  • Column, arm, work-head & gears made from fitnes closed grain cast iron; while spindle Ram trim Alloy steel.
  • Main spindle run out is checked for accuracy as per IS 2199.
  • For the smooth sliding of sliding arms, special 'slide-reliever-slots' are given.
  • All moving parts are fine-finished with grinding to a close tolerance.
  • International technic of 'Taper wedge setting'. for complete slide-setting instead of normal one point setting.
  • Quality bearings with grease bath, so for permanent oiling.
  • Main gear and pulley are perfectly balanced.
  • All gears are made from SGI casting.
  • Powder coated accessories for longer life and preventing of corrosion and pillage associated with usual chhrome plating.

Model Code System

  • P = Pillar Drill m/c
  • 20/25/40 = Drilling capacity
  • S = Square Head Model
  • R = Round Head Model
  • L = Long Spindle Travel
  • A = Autofeed Model
  • X = Xtra Heavy Model

Std. Accessory

  • Motor Pulley
  • Tapper Drift
  • Manual Book
  • Drill-bit angle gauge
